Lever Block

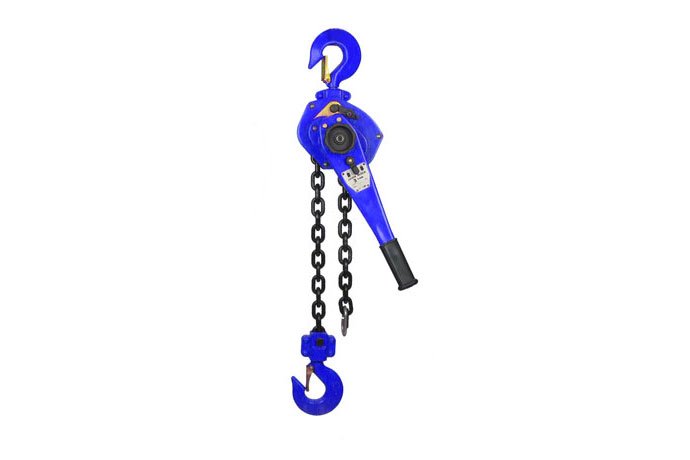

MLH-V series Lever Block

The MLH-V series of lever hoists including 0.75 / 1 / 1.5 / 2 / 3 / 6 / 9 tons for fulfill different demands from customers. Both gear and hand chain wheel of lever chain hoist are protected by hydraulic drew cases which is ideally shaped and rugged to be able to withstand external shocks. Load chain guide ensures the load chain proper fitting the load sheave during operation and protect the load sheave from wet and dirt.

Detail specification :
  • Steel Cover: Gear cover and brake cover are fabricated from pre-formed steel providing a rugged structure to resist shocks and bumps.
  • Load Chain: Grade 80 alloy steel chain conforms to ISO specifications.
  • Chain Stopper: Prevents load chain from falling out upon reaching maximum lift.
  • Load Chain Guide: Insures accurate feeding of load chain onto load sprocket and assists in protecting the load sprocet from debris and moisture.
  • Hand Wheel: Allows adjustment of very light loads or slack chain prior to engaging ratchet.
  • Load Brake: Regardless of load induced the asbestos-free load brake will hold the load and is designed for long lift.
  • Dual Ratchet Pawls: For added safety dual ratchet pawls are installed.
  • Upper and Lower Hooks: 360 degree free swiveling forged steel hooks are equipped with safety latches.

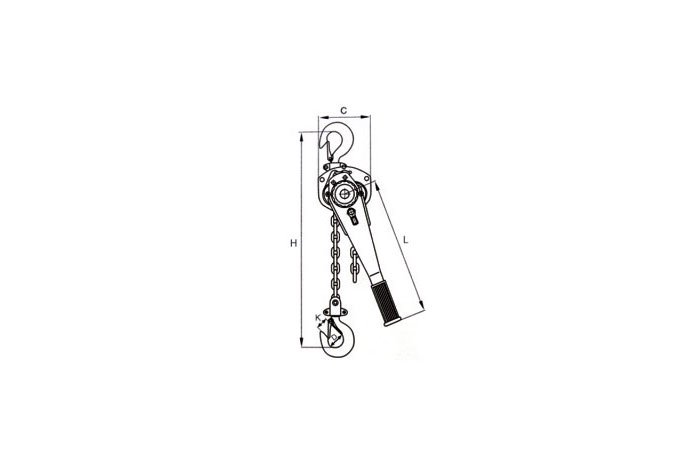

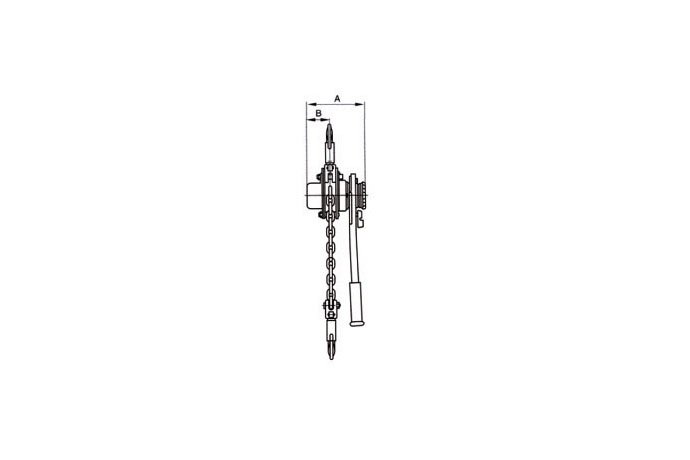

Technical Parameters
