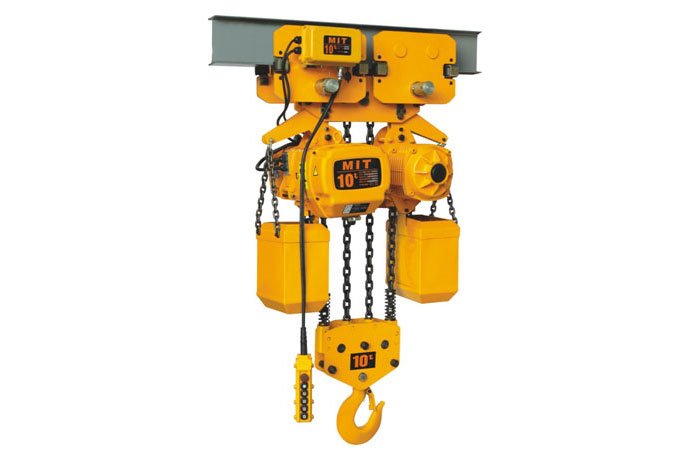

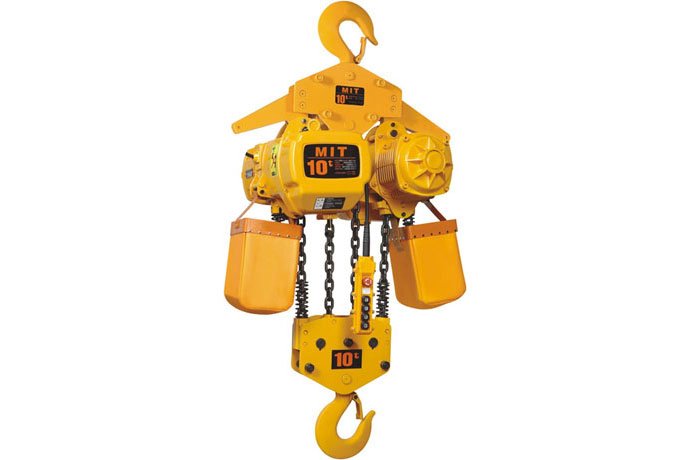

ES series Electric Chain Hoist 10Ton
MIT Havey duty electric chain hoist 10Ton avilable for hook suspension and motorized trolley type, with two trolley design, the hoist works safety.
Detail specification :
- Motor Housing: Aluminum alloy casting, features rigid structure and light weight. Totally enclosed construction, withstands harsh conditions such as chemical and electro-plating enviroments , etc.
- Motor: The lifting motor and travelling motor are Vacuum painted, the insulation class is F.
- Motor Break: The side magnetic break device makes instant break as soon as the electric power cut off, to make sure the safety loading.
- Limit Switch: Up/Down Limit switch fitted as both top and botton ends, shuts off power automatically to prevent load chain from running out.
- Contactor: High performance non-fuse circuit breakers allow frequent trouble.
- Phase Error Relay: A specially designed electric board prevents motor from running at it reverse phased.
- Load Chain: FEC Grade 80 case hardned alloy steel chain, endures harsh conditions such as rain, salt water and chemicals.
- Load Hook: Hot forget high tensile steel, rigid and durable, 360° swvel, fitting with safety latch to assure safe lifting.
- Push Button Pendant: Protection class IP65. Fully water-proof and insulated, offers light weight and durability.
- Transformer: Power to Pendant control reduced to 24V,36V,or 48V low voltage for safer operation.
